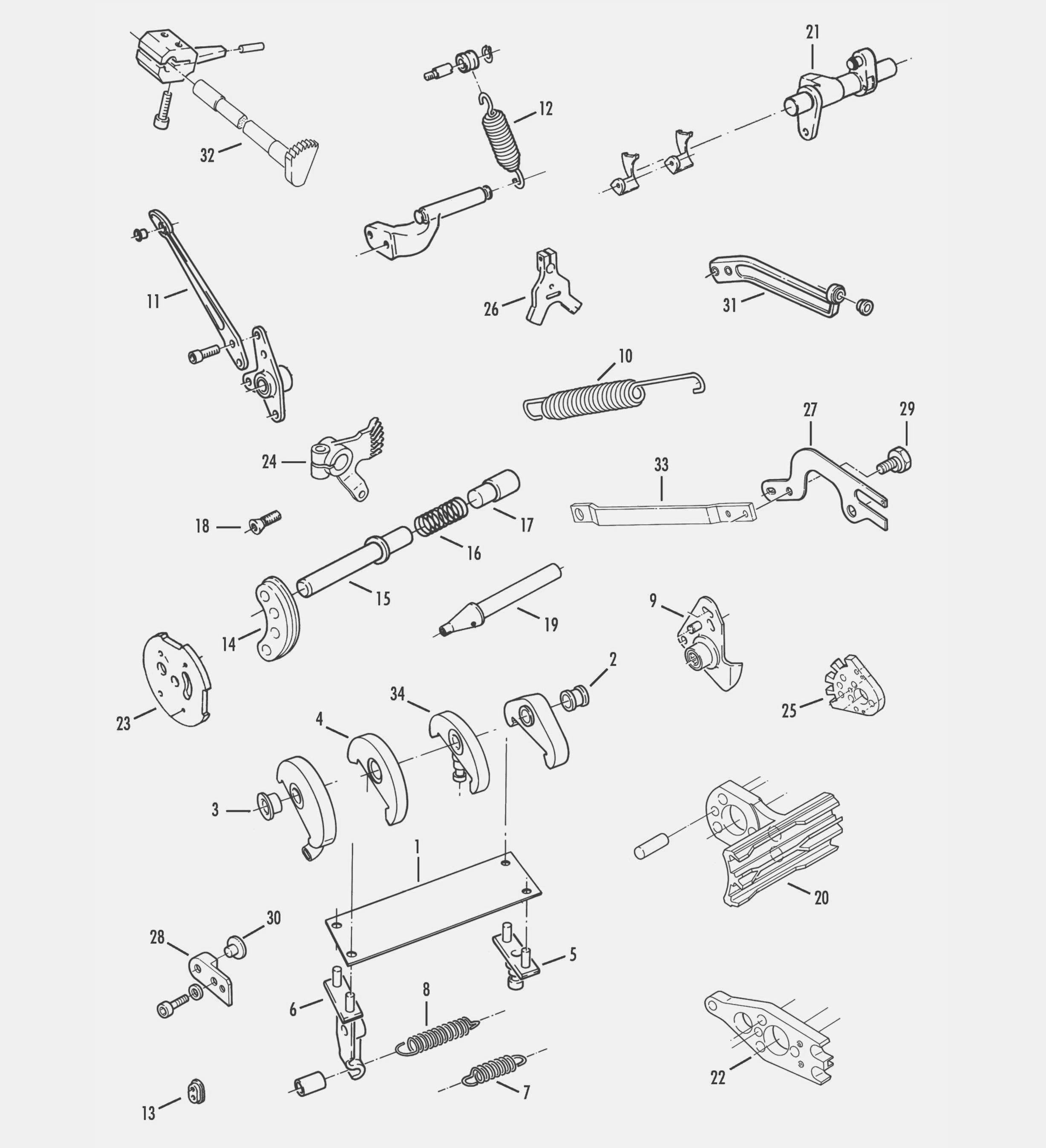

Atkı Fren Ünitesi ve Renk Seçici Grup / BRAKE BAND UNIT and COLOR SELECTOR

Atkı Fren Ünitesi ve Renk Seçici Grup / BRAKE BAND UNIT and COLOR SELECTOR

Product Image
Component Image

Order Total Pos. OZ No: ART No: Designation:
1 1301 911114926 ATKI FREN BANDI 0.7 MM / BRAKE BAND 0.7 MM
1 1303 ATKI FREN BANDI 2 MM / BRAKE BAND 2 MM
3 1305 911214331 ATKI PORSELENİ / EYELET D=6.5 D1, D12
4 1307 911814018 FREN PORSELENLİ D1 / EYELET PIECE WITH EYELET D=7
6 1309 912514283 911.414.316 ATKI FREN BANDI ARKA AYAK / ANGLE
8 1311 911114537 GERGİ YAYI SERT
10 1313 715691000 ATKI GERDİRİCİ KOL YAYI / SPRING 2.25/19.25X150
12 1315 911114748 KOL GERGİ YAYI / SPRING 2.8/25.6X108
14 1317 911241120 ATKI PORSELENİ / EYELET SEGMENT D=4.5 D1/D12
15 1319 911341616 ATKI BORUSU 8.5/11X100 D12, D2 / FILLING TUBE 8.5/11X100 D12, D2
16 1322 911141627 ATKI BORUSU YAYI 0.9/10.3X31 D1 / PRESSURE SPRING 0.9/10.3X31 D1
17 1324 911341617 ATKI BORUSU BAŞUĞU D2 / PRESSURE PIECE 8.5/12.5X32 D12, D2
19 1326 911141346 911 341 272 RENK SEÇİCİ KOVAN / SELECTOR AXLE D1
21 1328 911840119 İKİ RENK SELEKTÖR MİLİ / SELECTOR SHAFT 1-1, 2E, 2S, J
23 1330 912541261 RENK SEÇİCİ KİLİDİ / LOCKING PLATE P911, P7100, P7100M, D1
25 1332 917750670 4 RENK KOVAN KELEBEK / STOP SEGMENT 4 "TOOTHED PLATE FOR SELECTOR"
27 1334 740939000 İKİ RENK ATKI ÇATALI / BEND BAR 1-1, 2Q
29 1336 911340616 EKSANTRİK VİDA / ECCENTER SCREW M6X20.4
31 1338 917750355 ATKI GERDİRİCİ KOL P7150 / WEFT TENSIONING SUPPORT L=213
33 1340 911840167 KOL / ROD
Order Total Pos. OZ No: ART No: Designation:
1 1302 911114929 ATKI FREN BANDI 1 MM / BRAKE BAND 1 MM
2 1304 911814019 ATKI PORSELENİ / EYELET D=8.5
3 1306 911214332 ATKI PORSELENİ / EYELET D=5
5 1308 912514286 ATKI FREN BANDI ÖN AYAK / CLAMPING PLATE
7 1310 911214133 GERGİ YAYI YUMUŞAK / SPRING WEAK 0.8/8.8X41.6
9 1312 911814232 ÇİFT ATKI GERDİRİCİ YATAĞI / LEVER D=10 MB280-540, ES-DS, MW2, ZSD2, ZSM2, WS
11 1314 911814173 912514208 ATKI TANSİYON KOLU / WEFT TENSIONER LEVER D1
13 1316 911340132 ATKI PORSELENİ İKİRENK D1 / EYELET SEGMENT 20.5X5.8X32.5, D=4.5 D1
15 1318 911341257 911341637 ATKI BORUSU 5/7.1/10.8X103.4 D1 / FILLING TUBE 5/7.1/10.8X103.4 D1
16 1321 911340122 ATKI BORUSU YAYI 1.0/12.5X26 D12, D2 / PRESSURE SPRING 1.0/12.5X26 D12, D2
17 1323 911341136 ATKI BORUSU BAŞUĞU D1 / PRESSURE PIECE 4.5/10.5X26.45 D1
18 1325 911241341 RENK SEÇİCİ ÖZEL VİDASI / SPECIAL SCREW M6
20 1327 911840146 RENK SEÇİCİ KOVAN İKİ RENK SELEKTÖR / SELECTOR P7100, 1-1, 2, D1, K2
22 1329 911740017 2 RENK ÇATAL SELEKTÖR / SELECTOR LEVER 1-1, 2, D12, D2
24 1331 911141366 YARIM AY DİŞLİ / TOOTHED LEVER
26 1333 715781000 ÇİFT ATKI CAMBAZI "ÇATAL"/ STOP DISC 2
28 1335 911840141 DURDURMA ARA PARÇA 7 STOP PIECE
30 1337 716392000 DURDURMA CİVATASI / ARRESTING BOLT 6/12X11
32 1339 91114112 RENK SEÇİCİ DİŞLİ MİL / CAM DRIVING SHAFT VS
34 1341 911814272 PLAKA TUTUCU D1 / CLAMPING PLATE D1
