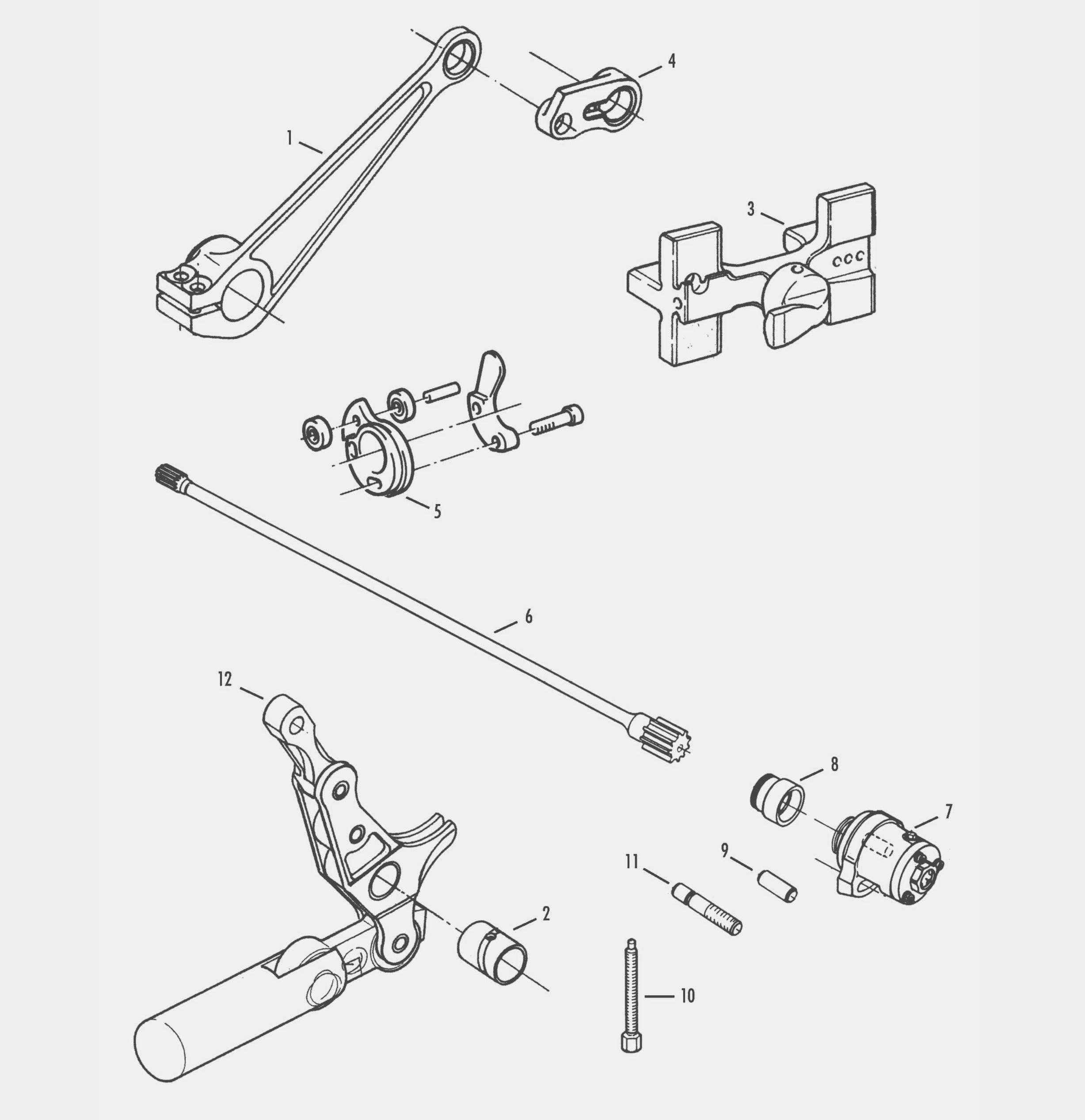

Vuruş Mekanizması / PICKING GROUP

Vuruş Mekanizması / PICKING GROUP

Product Image
Component Image

Order Total Pos. OZ No: ART No: Designation:

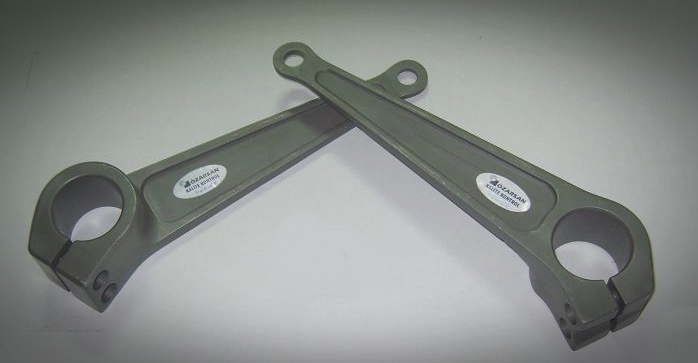

1 1501 911822065 VURUŞ KOLU D=37 / PICKING LEVER D=37

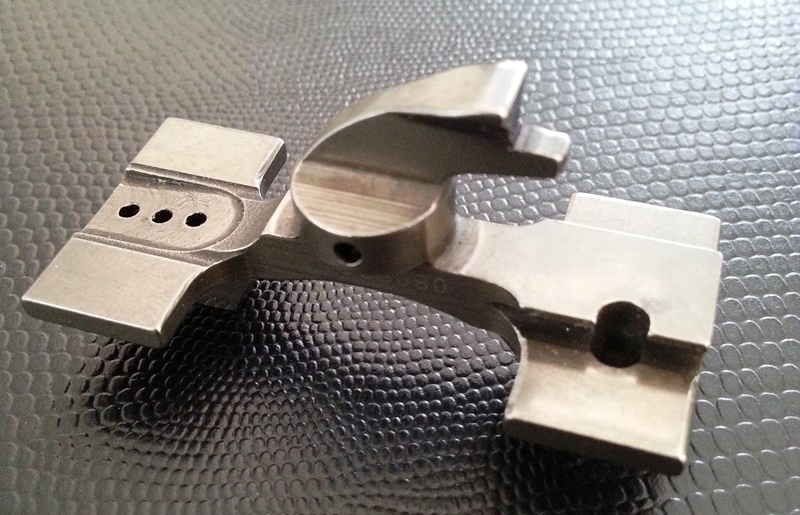

3 1511 742768000 911322903 VURUŞ TAKESİ P7100 D1 / PICKING SHOE ELASTIC S, B, W, P, D1, D12 P7100 742.768.000

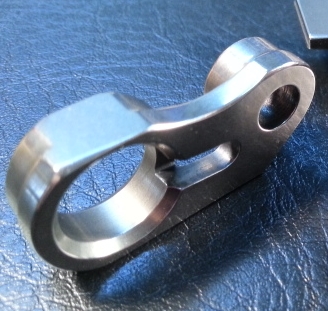

4 1514 911122214 TAKE MAFSALI TW11 / PICKING LINK TW11
1516 5 911122160 VURUŞ EKSANTRİĞİ TW11 / SET PICKING CAM TW11
1518 5 911322928 VURUŞ EKSANTRİĞİ P7100 / PICKING CAM P7100
7 1520 911122232 TORSİYON BAŞLIĞI / TENSION FLANGE
7 1522 911822057 TORSİYON BAŞLIĞI PU / TENSION FLANGE PU
8 1524 911122295 TORSİYON BAŞLIĞI BRONZ BURÇ / BUSH
10 1526 911322302 TORSİYON GERDİRME CİVATASI / SETTING SCREW M14X1,5 L=110 MM
10 1528 911322527 TORSİYON GERDİRME CİVATAS / SETTING SCREW M14X1.5X168 T=15.8/17.2 MM
12 1530 911822076 ÖZENGİ / PICKER ROLLER LEVER WITH BRAKE PISTON D1, D12, D2
Order Total Pos. OZ No: ART No: Designation:
1 1502 911822107 VURUŞ KOLU D=38 / PICKING LEVER D=38
4 1512 911322397 TAKE MAFSALI P7100 D1 / PICKING LINK D1,D2,D12,K2,P7100
4 1515 911322147 TAKE MAFSALI D1, PU / PICKING LINK 7.5 MM, D1
1517 5 911322227 VURUŞ EKSANTRİĞİ PU / PICKING CAM PU, D1/D12/D2/K2
6 1519 911322934 TORSİYON MİLİD=15.8 / TORSION ROD OSCILLATING D=15.8 D1, D2
7 1521 911822137 TORSİYON BAŞLIĞI P7100 / TENSION FLANGE P7100
8 1523 911722009 TORSİYON BAŞLIĞI BRONZ BURÇ / BUSH PU D 40/42 L=37 MM
9 1525 921799100 DAYAMA PİMİ / PRECISION CYLINDRICAL PIN15X45
10 1527 911322335 TORSİYON GERDİRME CİVATASI / SETTING SCREW M14X1.5X118
11 1529 921011432 SABİTLEME CİVATASI / PIN SCREW M12X65

VURUŞ KOLU D=37 / PICKING LEVER D=37

VURUŞ KOLU D=38 / PICKING LEVER D=38

VURUŞ TAKESİ P7100 D1 / PICKING SHOE ELASTIC S, B, W, P, D1, D12 P7100 742.768.000

TAKE MAFSALI P7100 D1 / PICKING LINK D1,D2,D12,K2,P7100

TAKE MAFSALI TW11 / PICKING LINK TW11

TAKE MAFSALI D1, PU / PICKING LINK 7.5 MM, D1

VURUŞ EKSANTRİĞİ TW11 / SET PICKING CAM TW11

VURUŞ EKSANTRİĞİ PU / PICKING CAM PU, D1/D12/D2/K2

VURUŞ EKSANTRİĞİ P7100 / PICKING CAM P7100

TORSİYON MİLİD=15.8 / TORSION ROD OSCILLATING D=15.8 D1, D2

TORSİYON BAŞLIĞI / TENSION FLANGE

TORSİYON BAŞLIĞI P7100 / TENSION FLANGE P7100

TORSİYON BAŞLIĞI PU / TENSION FLANGE PU

TORSİYON BAŞLIĞI BRONZ BURÇ / BUSH PU D 40/42 L=37 MM

TORSİYON BAŞLIĞI BRONZ BURÇ / BUSH

DAYAMA PİMİ / PRECISION CYLINDRICAL PIN15X45

TORSİYON GERDİRME CİVATASI / SETTING SCREW M14X1,5 L=110 MM

TORSİYON GERDİRME CİVATASI / SETTING SCREW M14X1.5X118

TORSİYON GERDİRME CİVATAS / SETTING SCREW M14X1.5X168 T=15.8/17.2 MM

SABİTLEME CİVATASI / PIN SCREW M12X65

ÖZENGİ / PICKER ROLLER LEVER WITH BRAKE PISTON D1, D12, D2
