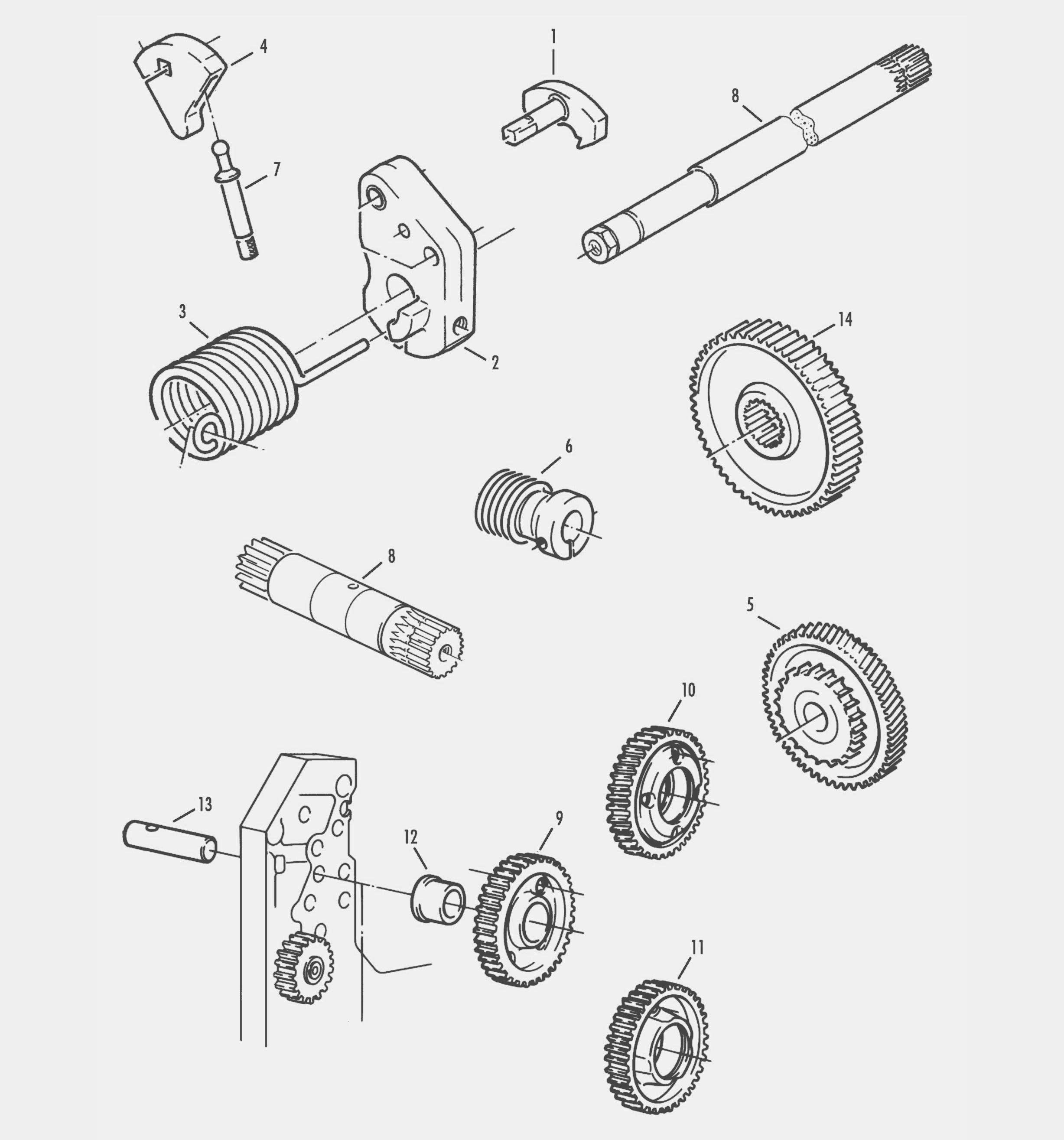

Kumaş Çekim Grubu ve Dişliler / TAKE UP DRIVE

Kumaş Çekim Grubu ve Dişliler / TAKE UP DRIVE

Product Image
Component Image

Order Total Pos. OZ No: ART No: Designation:
1 2101 911110268 TIRNAK / RATCHET 1:60
2 2103 911110250 TIRNAK BAĞLANTI GÖVDESİ / RATCHET SUPPORT
4 2105 911110235 SVİÇ KOLU / GEAR LEVER
5 2017 912510111 KUMAŞ ÇEKİM DİŞLİSİ / GLOBOID WORM WHEEL 4:60
5 2109 911510113 KUMAŞ ÇEKİM DİŞLİSİ / WORM WHEEL 1:60
6 2111 911110337 SONSUZ DİŞLİ / WORM 4:60
6 2113 911510116 SONSUZ DİŞLİ / WORM 2:60
6 2115 911110338 SONSUZ DİŞLİ / WORM 8:55
8 2117 911110341 DİŞLİ MİL / PINION SHAFT Z=10, MODUL3.5
8 2119 911310218 DİŞLİ MİL / SPLINED SHAFT FOR WSA TAKE-UP DRIVE FINE L=416.6 WSA
9 2121 912511039 ÇEKİM YATAK DİŞLİSİ / SPUR WHEEL Z=48, MODUL4
11 2123 911311762 ÇEKİM YATAK DİŞLİSİ / SPUR WHEEL Z=48
13 2125 911311532 YATAK MİLİ / STUD
Order Total Pos. OZ No: ART No: Designation:
1 2102 911310243 911110246 TIRNAK / RATCHET 2:60, 4:60, 8:55
3 2104 911210131 GERGİ YAYI / TORSION SPRING 5/60.5X47
5 2016 912510112 KUMAŞ ÇEKİM DİŞLİSİ / GLOBOID WORM WHEEL 2:60
5 2108 911110242 KUMAŞ ÇEKİM DİŞLİSİ / WORM WHEEL 4:60
5 2110 912510114 KUMAŞ ÇEKİM DİŞLİSİ / WORM WHEEL 8:55
6 2112 912510115 SONSUZ DİŞLİ / WORM 1:60
6 2114 912510117 SONSUZ DİŞLİ / WORM 4:60
7 2116 911110238 SVİÇ KOL MAFSALI / RESITING BOLT
8 2118 911110176 DİŞLİ MİL-PU / SPLINET SHAFT- PU
8 2120 912311078 DİŞLİ MİL / SET SPLINED SHAFT L=420.5
10 2122 911811053 ÇEKİM YATAK DİŞLİSİ / GEAR WHEEL HELICAL GEARING Z=48 S
12 2124 911211164 BURÇ / BUSH 35/45X42
14 2126 911310169 DESTEK DİŞLİSİ Z=49 / SPUR WHEEL Z=49 R

TIRNAK / RATCHET 1:60

TIRNAK / RATCHET 2:60, 4:60, 8:55

TIRNAK BAĞLANTI GÖVDESİ / RATCHET SUPPORT

GERGİ YAYI / TORSION SPRING 5/60.5X47

SVİÇ KOLU / GEAR LEVER

KUMAŞ ÇEKİM DİŞLİSİ / GLOBOID WORM WHEEL 2:60

KUMAŞ ÇEKİM DİŞLİSİ / GLOBOID WORM WHEEL 4:60

KUMAŞ ÇEKİM DİŞLİSİ / WORM WHEEL 4:60

KUMAŞ ÇEKİM DİŞLİSİ / WORM WHEEL 1:60

KUMAŞ ÇEKİM DİŞLİSİ / WORM WHEEL 8:55

SONSUZ DİŞLİ / WORM 4:60

SONSUZ DİŞLİ / WORM 1:60

SONSUZ DİŞLİ / WORM 2:60

SONSUZ DİŞLİ / WORM 4:60

SONSUZ DİŞLİ / WORM 8:55

SVİÇ KOL MAFSALI / RESITING BOLT

DİŞLİ MİL / PINION SHAFT Z=10, MODUL3.5

DİŞLİ MİL-PU / SPLINET SHAFT- PU

DİŞLİ MİL / SPLINED SHAFT FOR WSA TAKE-UP DRIVE FINE L=416.6 WSA

DİŞLİ MİL / SET SPLINED SHAFT L=420.5

ÇEKİM YATAK DİŞLİSİ / SPUR WHEEL Z=48, MODUL4

ÇEKİM YATAK DİŞLİSİ / GEAR WHEEL HELICAL GEARING Z=48 S

ÇEKİM YATAK DİŞLİSİ / SPUR WHEEL Z=48

BURÇ / BUSH 35/45X42

YATAK MİLİ / STUD

DESTEK DİŞLİSİ Z=49 / SPUR WHEEL Z=49 R
