Motor Tahrik Grubu,Fren Çemberleri / DRIVE AND MACHINE BRAKE

Motor Tahrik Grubu,Fren Çemberleri / DRIVE AND MACHINE BRAKE

Product Image
Component Image

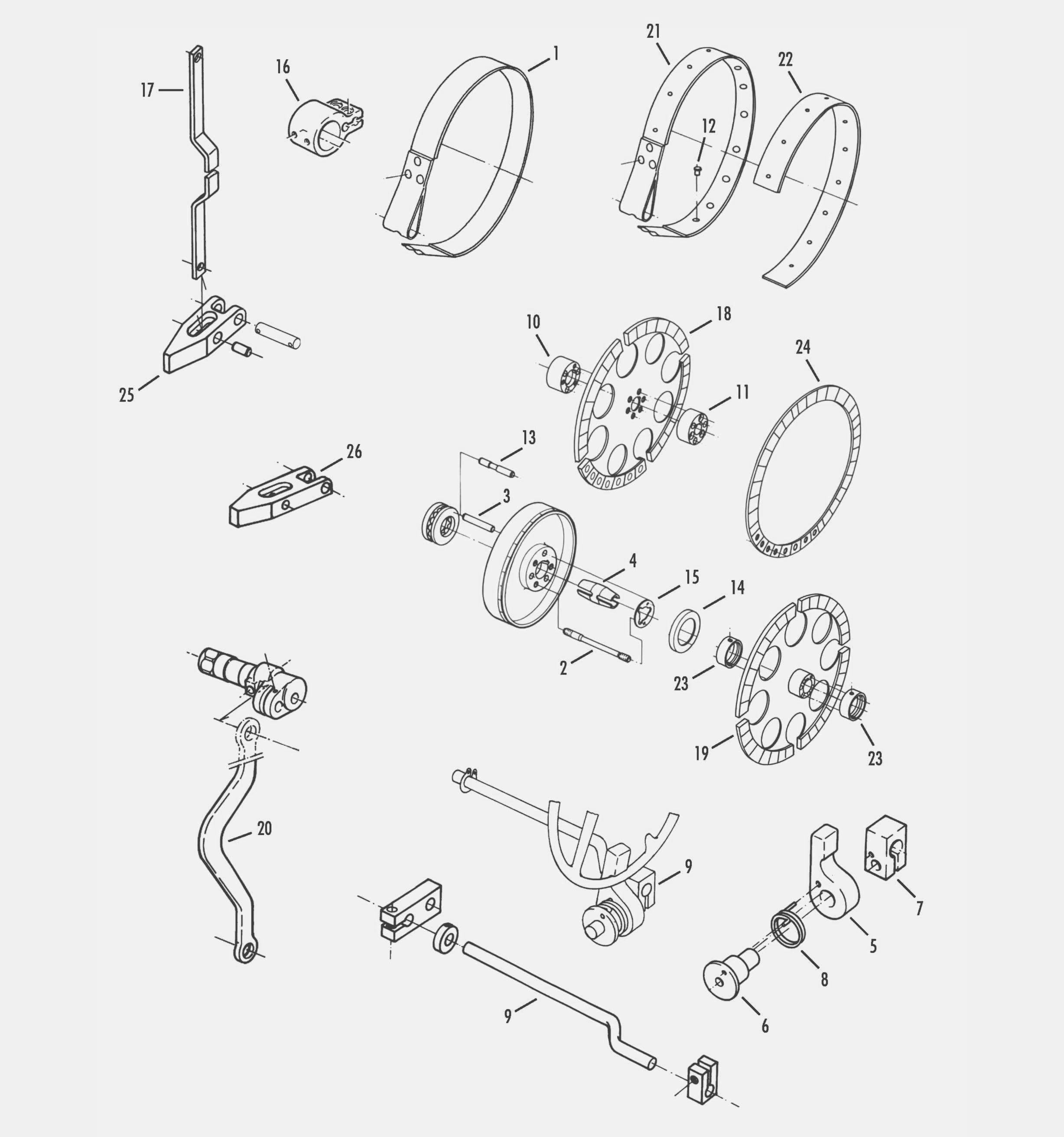

Order Total Pos. OZ No: ART No: Designation:
1 2301 91804055 Fren Çemberi / BRAKE BAND FREE OF ASBESTOS
3 2303 911103469 PİM / PIN
5 2305 911303398 KİLİTLEME KOLU / LOCKING LEVER
7 2307 911303489 KELEPÇE PARÇASI / CLAMPING PIECE
9 2309 911803072 VOLAN AYIRICI KOL / HAND WHEEL STOP
11 2311 911103398 KAVRAMA DİSKİ GÖBEĞİ DIŞ / CLAMPING RING OUTSIDE
12 2313 911200925 BALATA PERÇİNİ / HOLLOW RIVET 4.9X10.7
14 2315 911303281 AYNA DİSK / PLATE DISC 100/132.5/138.5X11
15 2317 911303327 BASKI DİSKİ ARA SACI / WEAR RING
17 2319 911803014 AKTARMA KOLU / ROD
19 2321 911803102 912504012 İSTAVROZ BALATA 2 PARÇA / COUPLING DISC D=92
21 2323 911804028 FREN ÇEMBERİ / BRAKE BAND FREE OF ASBESTOS
23 2325 912103278 VOLAN GÖBEK BRONZ BURÇ / BUSH D92X102X30
25 2327 911303313 DEBRİYAJ KOLU / COUPLING LEVER
Order Total Pos. OZ No: ART No: Designation:
2 2302 911103335 Özel saplama L=172 / BOLT L=172
4 2304 911303082 DERECELİ KASNAK KONİK BURCU / TAPER BUSH KEY GROOVE L=11X8,5 MM
6 2306 911303437 DESTEK BURCU / SUPPORT BUSH 22/32/45X46
8 2308 911303491 TORSİYON (GERGİ) YAYI / TORSION SPRING 3.2/41.2X55
10 2310 911103397 KAVRAMA DİSKİ GÖBEĞİ İÇ / CLAMPING RING INSIDE
12 2312 911200274 BALATA PERÇİNİ / HOLLOW RIVET 2.4/3.6/9.5X9
13 2314 911203112 KAVRAMA BASKI MİLİ / PIN
14 2316 911303282 AYNA DİSK / PLATE DISC 120/160.5/166.5X13
16 2318 911704 006 911804054 FREN ÇEMBER KİLİT VULKOLON BURCU / CLAMPING PIECE
18 2320 911803101 KAVRAMA DİSKİ / COUPLING DISC
20 2322 911803117 AKTARMA KOLU / CONTROL BAR
22 2324 911304368 FREN ÇEMBER BALATASI / BRAKE LINING SET OF 5 PIECES FREE OF ASBESTOS
24 2326 912103461 911.703.019 BALATA SET 8 ADET / COUPLING SEGMENT SET OF 8 PIECES 911.703.019

Fren Çemberi / BRAKE BAND FREE OF ASBESTOS

Özel saplama L=172 / BOLT L=172

PİM / PIN

DERECELİ KASNAK KONİK BURCU / TAPER BUSH KEY GROOVE L=11X8,5 MM

KİLİTLEME KOLU / LOCKING LEVER

DESTEK BURCU / SUPPORT BUSH 22/32/45X46

KELEPÇE PARÇASI / CLAMPING PIECE

TORSİYON (GERGİ) YAYI / TORSION SPRING 3.2/41.2X55

VOLAN AYIRICI KOL / HAND WHEEL STOP

KAVRAMA DİSKİ GÖBEĞİ İÇ / CLAMPING RING INSIDE

KAVRAMA DİSKİ GÖBEĞİ DIŞ / CLAMPING RING OUTSIDE

BALATA PERÇİNİ / HOLLOW RIVET 2.4/3.6/9.5X9

BALATA PERÇİNİ / HOLLOW RIVET 4.9X10.7

KAVRAMA BASKI MİLİ / PIN

AYNA DİSK / PLATE DISC 100/132.5/138.5X11

AYNA DİSK / PLATE DISC 120/160.5/166.5X13

BASKI DİSKİ ARA SACI / WEAR RING

FREN ÇEMBER KİLİT VULKOLON BURCU / CLAMPING PIECE

AKTARMA KOLU / ROD

KAVRAMA DİSKİ / COUPLING DISC

İSTAVROZ BALATA 2 PARÇA / COUPLING DISC D=92

AKTARMA KOLU / CONTROL BAR

FREN ÇEMBERİ / BRAKE BAND FREE OF ASBESTOS

FREN ÇEMBER BALATASI / BRAKE LINING SET OF 5 PIECES FREE OF ASBESTOS

VOLAN GÖBEK BRONZ BURÇ / BUSH D92X102X30

BALATA SET 8 ADET / COUPLING SEGMENT SET OF 8 PIECES 911.703.019

DEBRİYAJ KOLU / COUPLING LEVER
