[2] Kumaş Çekim Grubu ve Dişliler / [2] TAKE UP DRIVE

[2] Kumaş Çekim Grubu ve Dişliler / [2] TAKE UP DRIVE

Product Image
Component Image

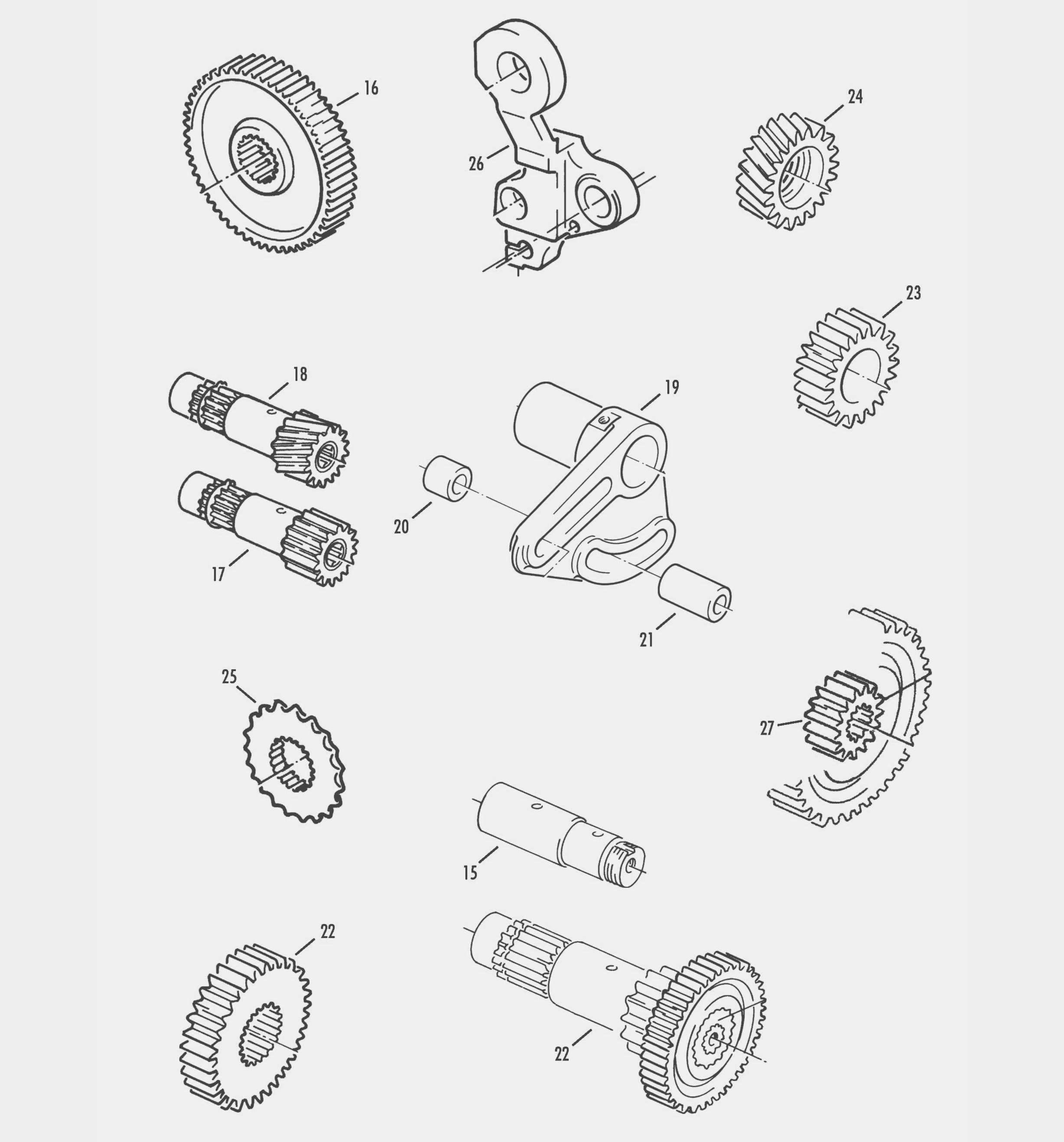

Order Total Pos. OZ No: ART No: Designation:
15 2127 911110353 ARA MİLİ DİŞLİSİ / AXLE L=129
17 2129 912510101 PİNYON DİŞLİSİ / PINION SHAFT Z=13, MODUL4 R 911 110 255
18 2131 912510102 PİNYON DİŞLİSİ / PINION SHAFT HELICAL GEARING Z=13, MODUL4 S
20 2133 911110119 BURÇ / SPACING BUSH 20X32X25.2
22 2135 911110423 SIKLIK DİŞLİSİ Z=14 / CHANGE WHEEL Z=14
22 2137 911110424 SIKLIK DİŞLİSİ Z=23/ CHANGE WHEEL Z=23
22 2139 911110413 SIKLIK DİŞLİSİ Z= 34 / CHANGE WHEEL Z=34
22 2141 911110414 SIKLIK DİŞLİSİ Z=38 / CHANGE WHEEL Z=38
22 2143 911110416 SIKLIK DİŞLİSİ Z=46 / CHANGE WHEEL Z=46
22 2145 911110418 SIKLIK DİŞLİSİ Z=50 / CHANGE WHEEL Z=50
22 2147 911110420 SIKLIK DİŞLİSİ Z=52 / CHANGE WHEEL Z=52
24 2149 912510151 ARA DİŞLİSİ HELİS Z=23 D=62 / INTERMEDIATE GEAR WHEELHELICAL Z=23 D=62
26 2151 911010254 DESTEK YATAĞI / SUPPORT
Order Total Pos. OZ No: ART No: Designation:
16 2128 911110355 DESTEK DİŞLİSİ Z=50 / SPUR WHEEL Z=49 S
17 2130 911110178 PİNYON DİŞLİSİ / PINION SHAFT Z=10
19 2132 911110189 SIKLIK DİŞLİ AYAR YATAĞI / GEAR WHEEL BRACKET
21 2134 911110120 BURÇ / SPACING BUSH 20X32X55
22 2136 911110401 SIKLIK DİŞLİSİ Z=15 / CHANGE WHEEL Z=15
22 2138 911110412 SIKLIK DİŞLİSİ Z=26 / CHANGE WHEEL Z=26
22 2140 911110422 SIKLIK DİŞLİSİ Z=37 /CHANGE WHEEL Z=37
22 2142 911110415 SIKLIK DİŞLİSİ Z=42 / CHANGE WHEEL Z=42
22 2144 911110417 SIKLIK DİŞLİSİ Z=49 / CHANGE WHEEL Z=49
22 2146 911110419 SIKLIK DİŞLİSİ Z=51 / CHANGE WHEEL Z=51
23 2148 912510129 ARA DİŞLİ / INTERMEDIATE GEAR WHEEL Z=23 D=47
25 2150 911110263 ARA ZİNCİR DİŞLİ / CHAIN WHEEL Z=23
27 2152 911110167 DİŞLİ BURÇ / SPLINED BUSH

ARA MİLİ DİŞLİSİ / AXLE L=129

DESTEK DİŞLİSİ Z=50 / SPUR WHEEL Z=49 S

PİNYON DİŞLİSİ / PINION SHAFT Z=13, MODUL4 R 911 110 255

PİNYON DİŞLİSİ / PINION SHAFT Z=10

PİNYON DİŞLİSİ / PINION SHAFT HELICAL GEARING Z=13, MODUL4 S

SIKLIK DİŞLİ AYAR YATAĞI / GEAR WHEEL BRACKET

BURÇ / SPACING BUSH 20X32X25.2

BURÇ / SPACING BUSH 20X32X55

SIKLIK DİŞLİSİ Z=14 / CHANGE WHEEL Z=14

SIKLIK DİŞLİSİ Z=15 / CHANGE WHEEL Z=15

SIKLIK DİŞLİSİ Z=23/ CHANGE WHEEL Z=23

SIKLIK DİŞLİSİ Z=26 / CHANGE WHEEL Z=26

SIKLIK DİŞLİSİ Z= 34 / CHANGE WHEEL Z=34

SIKLIK DİŞLİSİ Z=37 /CHANGE WHEEL Z=37

SIKLIK DİŞLİSİ Z=38 / CHANGE WHEEL Z=38

SIKLIK DİŞLİSİ Z=42 / CHANGE WHEEL Z=42

SIKLIK DİŞLİSİ Z=46 / CHANGE WHEEL Z=46

SIKLIK DİŞLİSİ Z=49 / CHANGE WHEEL Z=49

SIKLIK DİŞLİSİ Z=50 / CHANGE WHEEL Z=50

SIKLIK DİŞLİSİ Z=51 / CHANGE WHEEL Z=51

SIKLIK DİŞLİSİ Z=52 / CHANGE WHEEL Z=52

ARA DİŞLİ / INTERMEDIATE GEAR WHEEL Z=23 D=47

ARA DİŞLİSİ HELİS Z=23 D=62 / INTERMEDIATE GEAR WHEELHELICAL Z=23 D=62

ARA ZİNCİR DİŞLİ / CHAIN WHEEL Z=23

DESTEK YATAĞI / SUPPORT

DİŞLİ BURÇ / SPLINED BUSH
